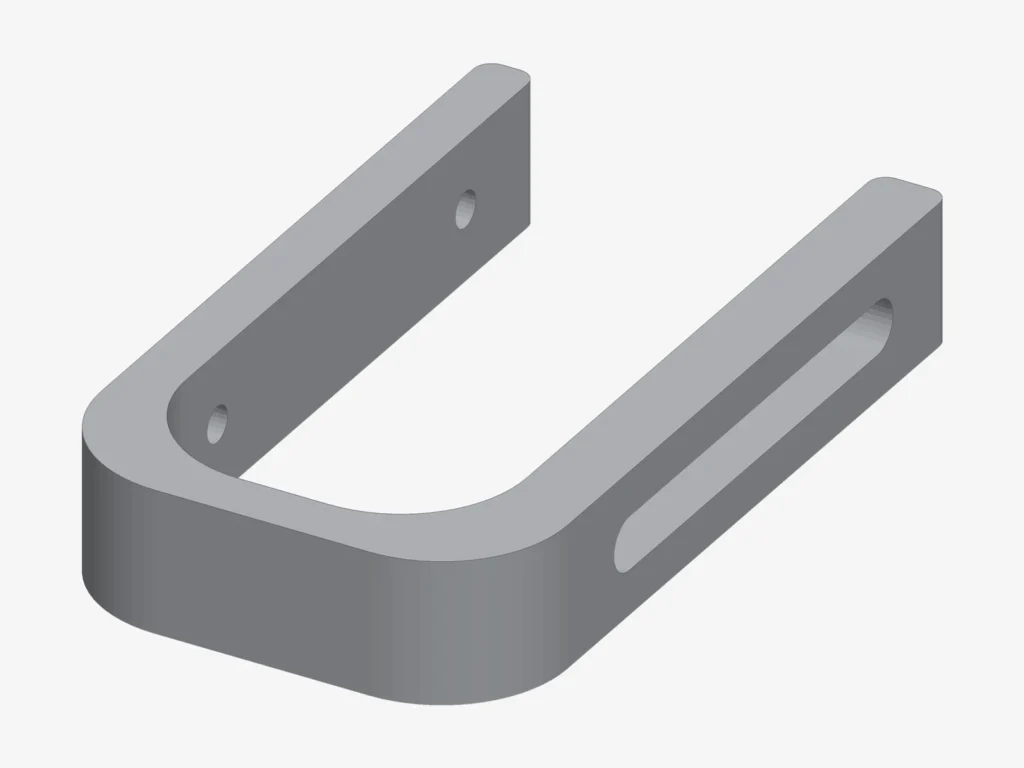

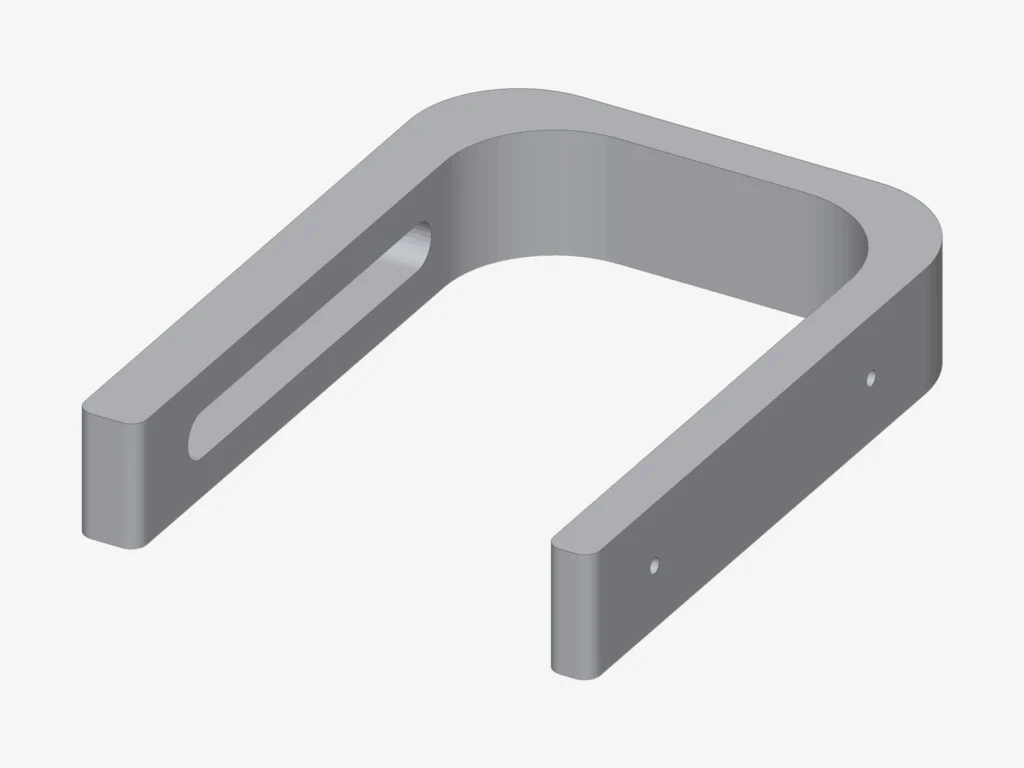

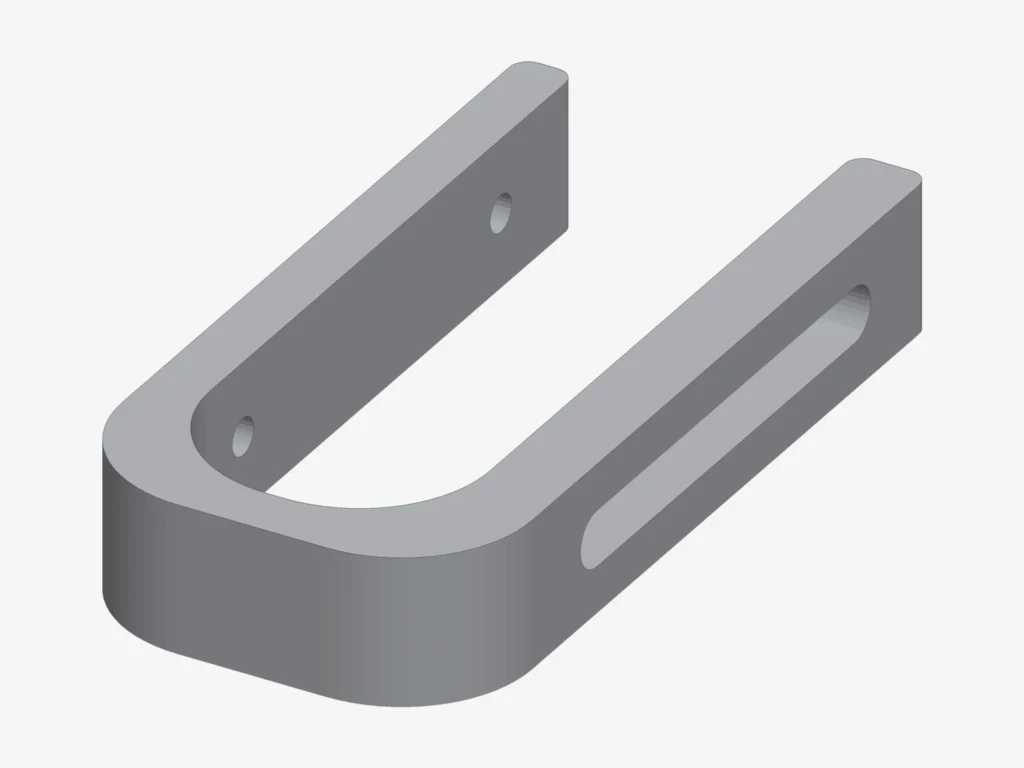

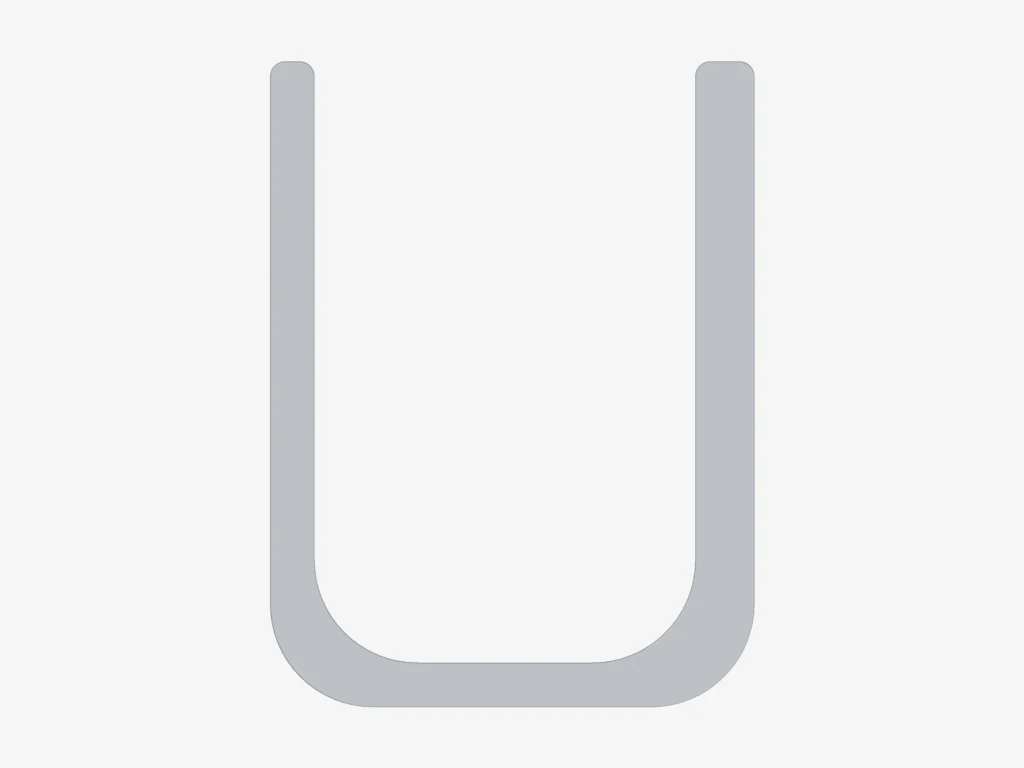

A U-shaped holder to hang an RC plane from the ceiling. It comes in three sizes, 75, 95 and 130 mm of inner width, so you can pick the one that matches the width of your fuselage. Use two holders per plane: screw them to the ceiling and slide the fuselage into the open side.
What is in the project file
There is one Bambu Studio project per size, each with a single plate holding two holders (one pair) nested side by side, ready to slice: 130 mm, 95 mm and 75 mm. All three are 220 mm long and 40 mm tall; only the inner width changes.
Installation

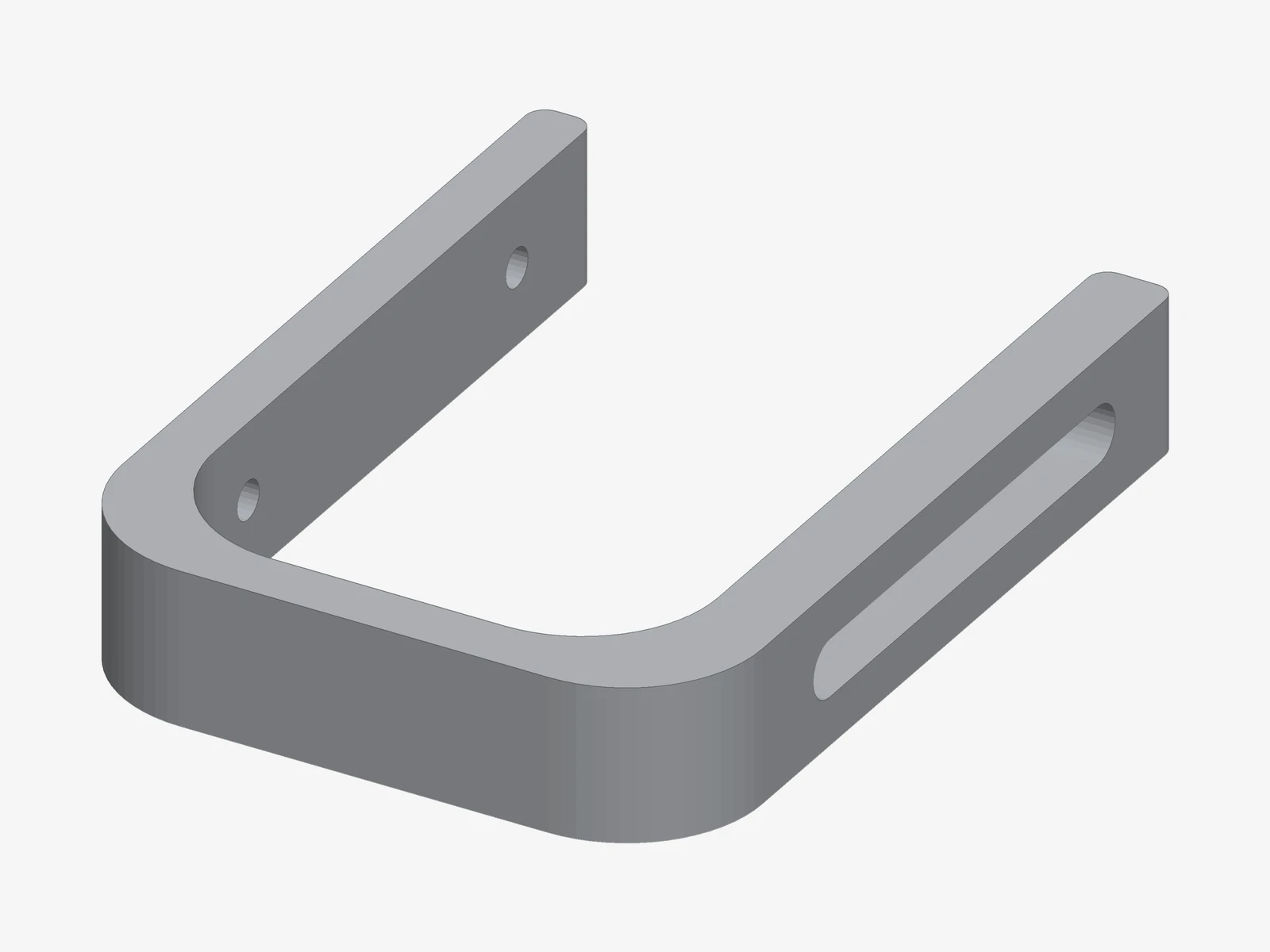

The thinner 15 mm arm goes against the ceiling. It has two 5 mm holes, 120 mm apart, counterbored to 10 mm on the inside so the screw heads sit flush. Use M4 or #8 wood screws, with wall plugs or into a joist. Mount the two holders in line, spaced to suit your plane, and rest the fuselage on the lower 20 mm arm, which has a long slot to save material.
Details
| Function | Ceiling holder for RC planes. Two U-shaped holders screw to the ceiling and the fuselage rests on the lower arm. |
|---|---|
| Dimensions | 165 × 220 × 40 mm (130 mm), 130 × 220 × 40 mm (95 mm), 110 × 220 × 40 mm (75 mm) |
| Compatibility |
|
Print settings
| Material | PLA / PLA+ |
|---|---|
| Layer height | 0.2 mm |
| Infill | 15% gyroid |
| Supports | Required |
| Print orientation | Lying flat, U profile on the bed, as set in the project |
Project prepared in Bambu Studio for a Bambu Lab P1S with a 0.4 mm nozzle, 0.20 mm Standard profile, 15% gyroid infill, 2 walls, 5 top and 3 bottom layers, auto tree supports (for the screw holes and the slot) and auto brim on the Textured PEI Plate. Each plate prints one pair of holders. SUNLU Silk PLA+ (130 and 95 mm) and SUNLU PLA+ (75 mm).
Files
License
CC BY-NC 4.0
Creative Commons Attribution-NonCommercial 4.0.
