A full protective case for the RadioMaster TX16S MKII. What makes it different: you do not need to remove the antennas from the RadioMaster Nomad Dual module to store or carry the radio. Close the lid and go.
What is in the project file
The 3MF is a Bambu Studio project with three plates, ready to slice:
- Plate 1: case base

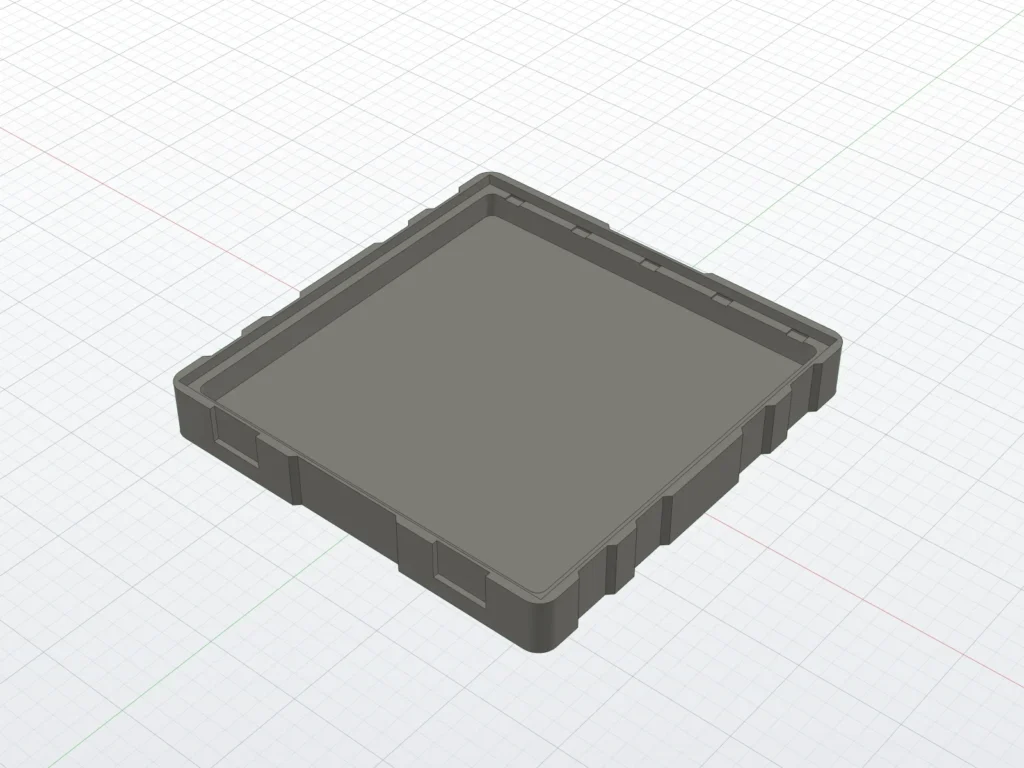

- Plate 2: lid

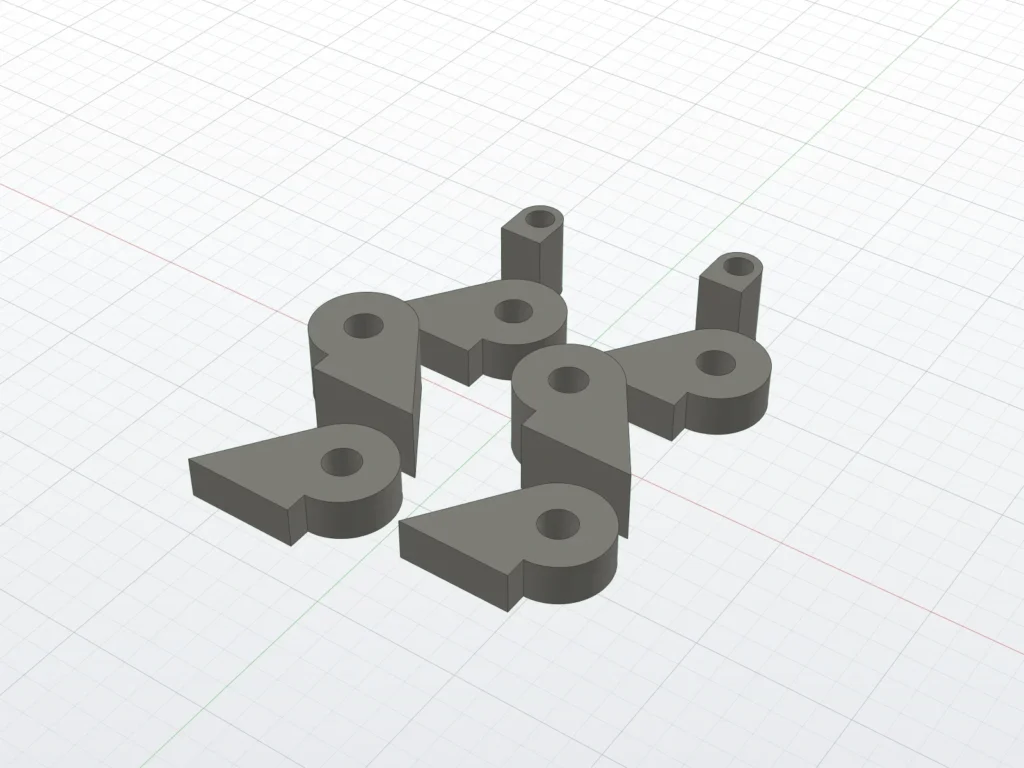

- Plate 3: 2× hinge top, 2× hinge base A, 2× hinge base B, 2× handle tower

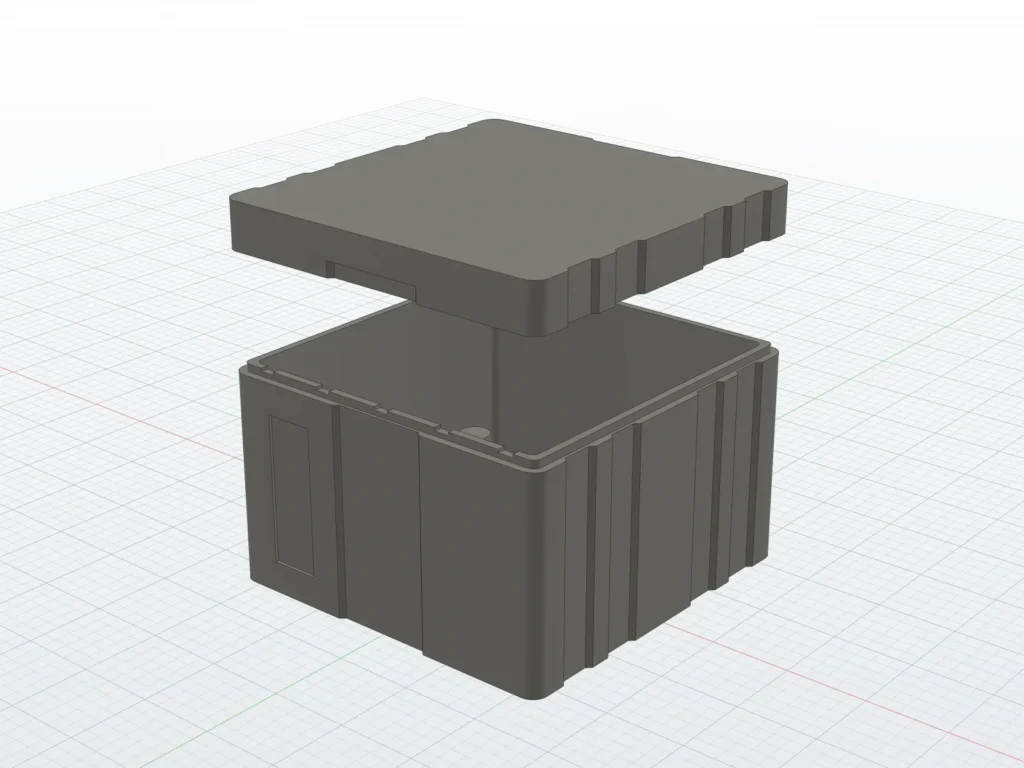

Assembly
Print plate by plate. The hinges are glued in place: use a glue suitable for PETG and let it cure fully before opening and closing the lid.
Details
| Function | Protective transport and storage case for the RadioMaster TX16S MKII radio. |
|---|---|

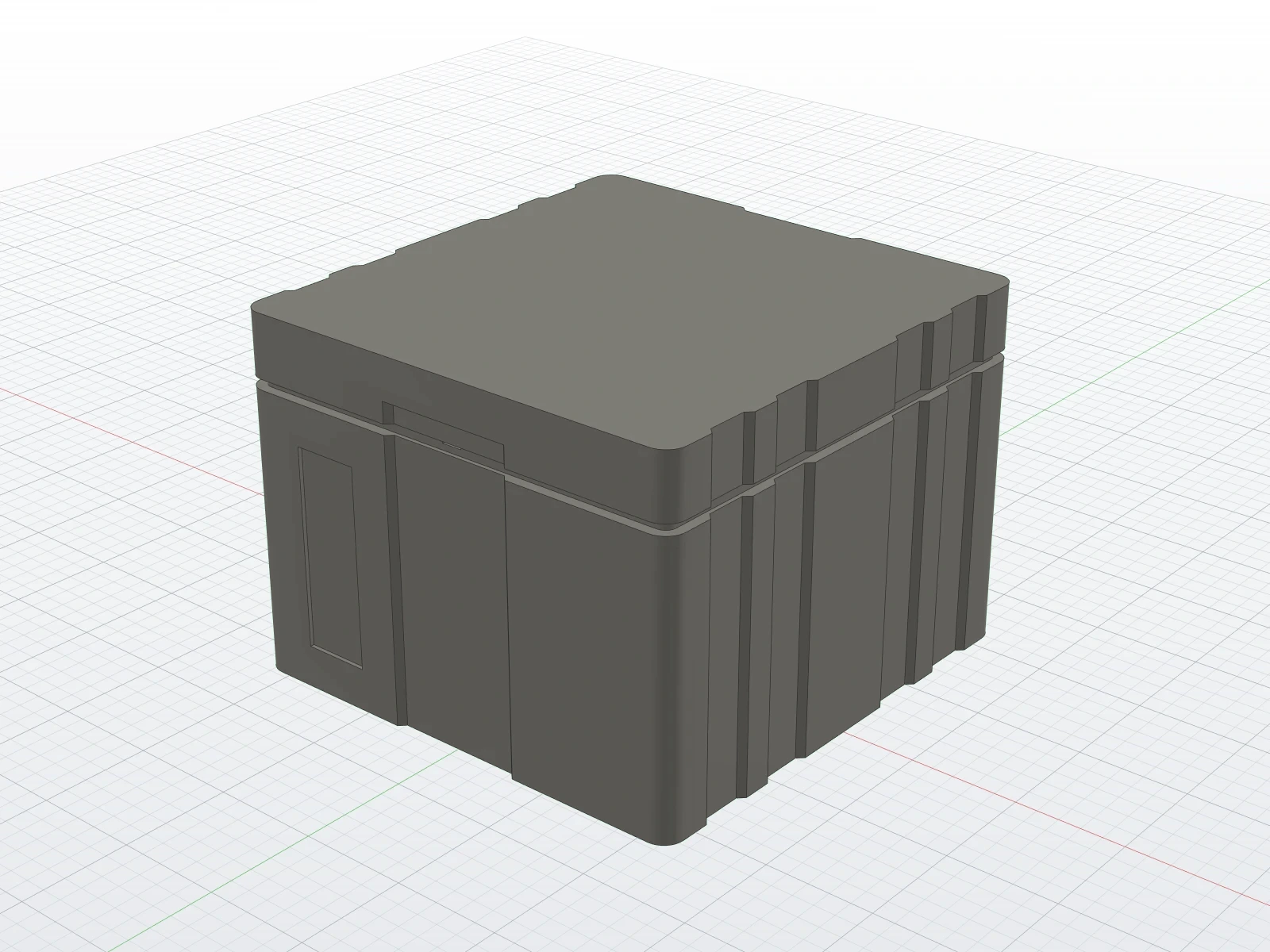

| Dimensions | 230 × 235 × 170 mm (closed, approx.) |
| Compatibility |
|
Print settings
| Material | PETG |
|---|---|
| Layer height | 0.2 mm |
| Infill | 8% grid (project default) |
| Supports | Required |
| Print orientation | Plate by plate (3 plates); base and lid open side up, as set in the project |
Project prepared in Bambu Studio for a Bambu Lab P1S with a 0.4 mm nozzle, 0.20 mm Standard profile, 3 walls, 5 top and 3 bottom layers, tree supports (auto) and auto brim. PETG recommended for its toughness and heat resistance.
Files
License
CC BY-NC 4.0
Creative Commons Attribution-NonCommercial 4.0.
- Personal useAllowed
- Commercial useNot allowed
- ModificationAllowed
- RedistributionWith conditions
- AttributionRequired
