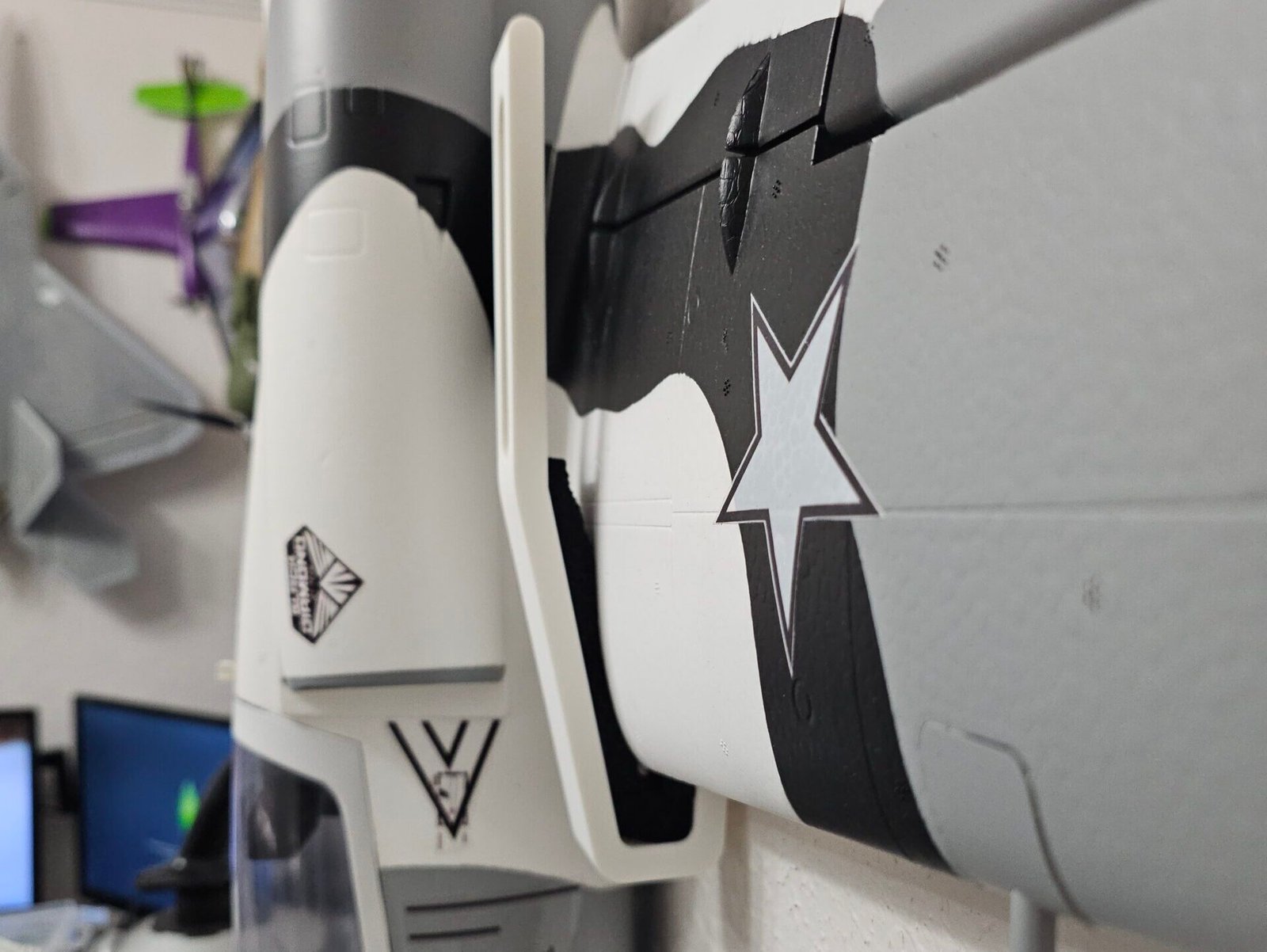

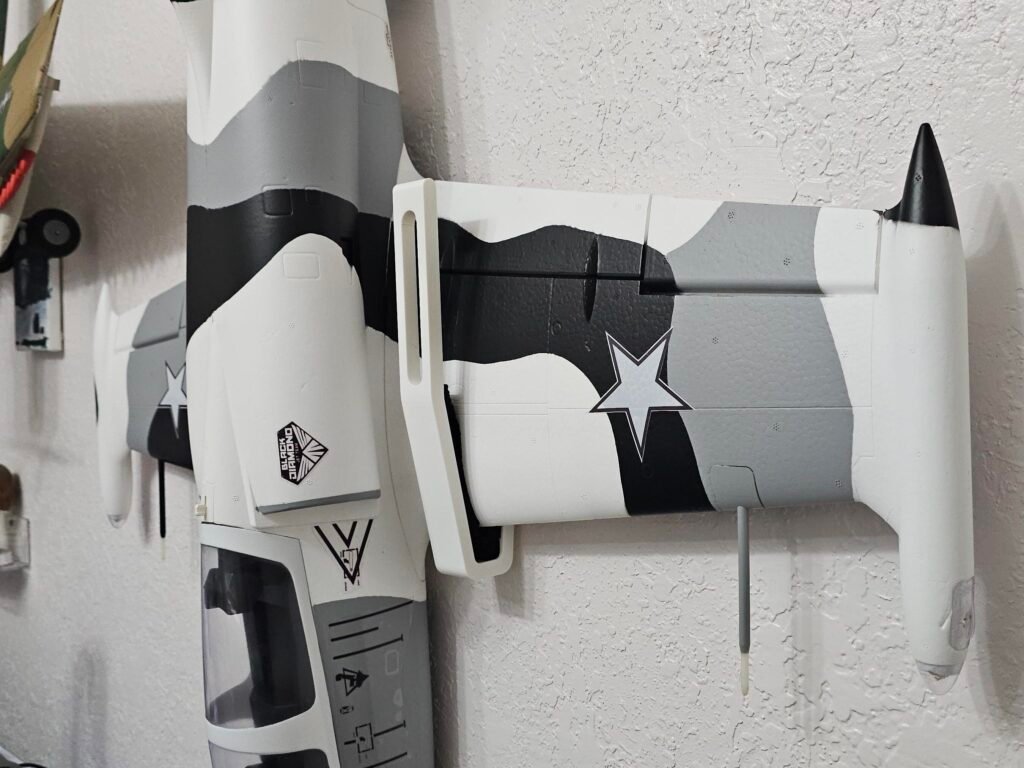

A pair of wall brackets to display and store any EDF jet. The U-shaped cradle holds the model securely and keeps it off the shelf, ready to grab for the next flight.
What is in the project file
The 3MF is a Bambu Studio project with one plate and two brackets, ready to slice.
Installation

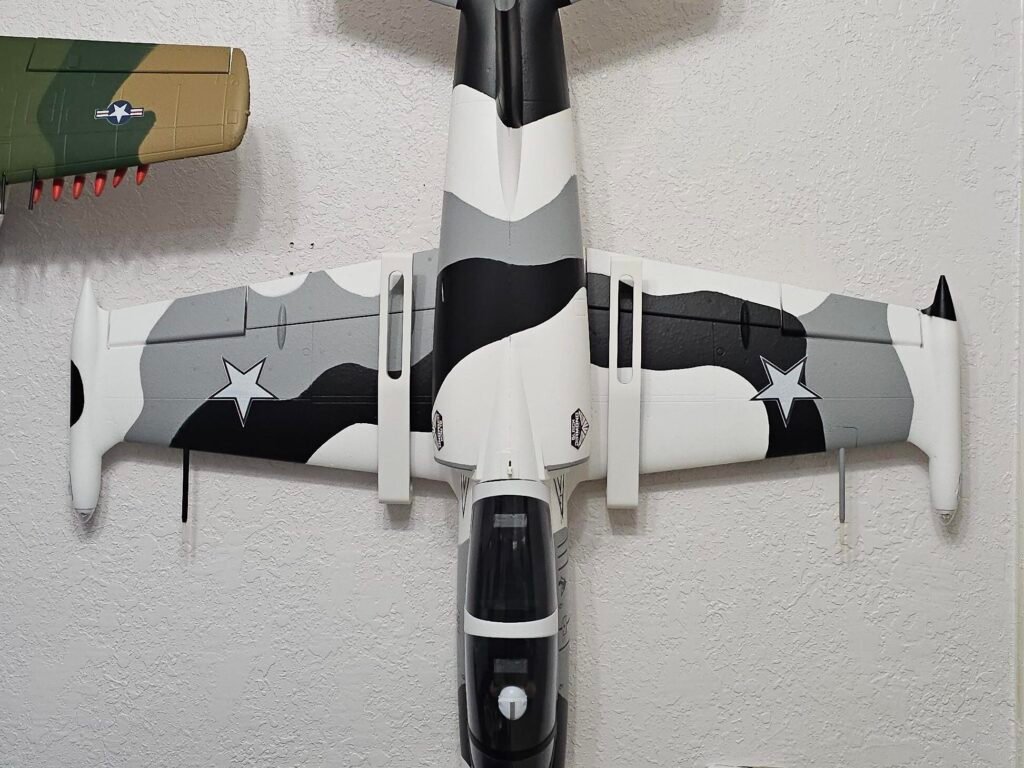

Each bracket has two screw holes on the wall side. Mount both brackets at the same height, spaced to suit your jet, using screws and anchors appropriate for your wall. The slot on the outer arm is purely decorative.
Details
| Function | Wall display and storage for EDF jets of any size. |
|---|---|
| Dimensions | 30 × 70 × 245.5 mm per bracket |
| Compatibility |
|
Print settings
| Material | PETG |
|---|---|
| Layer height | 0.2 mm |
| Infill | 15% grid |
| Supports | Not needed |
| Print orientation | Flat on its side, profile on the bed, as set in the project |
Project prepared in Bambu Studio for a Bambu Lab P1S with a 0.4 mm nozzle, 0.20 mm Standard profile, 2 walls, 5 top and 3 bottom layers and auto brim. One plate prints both brackets. PETG recommended.
Files
License
CC BY-NC 4.0
Creative Commons Attribution-NonCommercial 4.0.
- Personal useAllowed
- Commercial useNot allowed
- ModificationAllowed
- RedistributionWith conditions
- AttributionRequired
